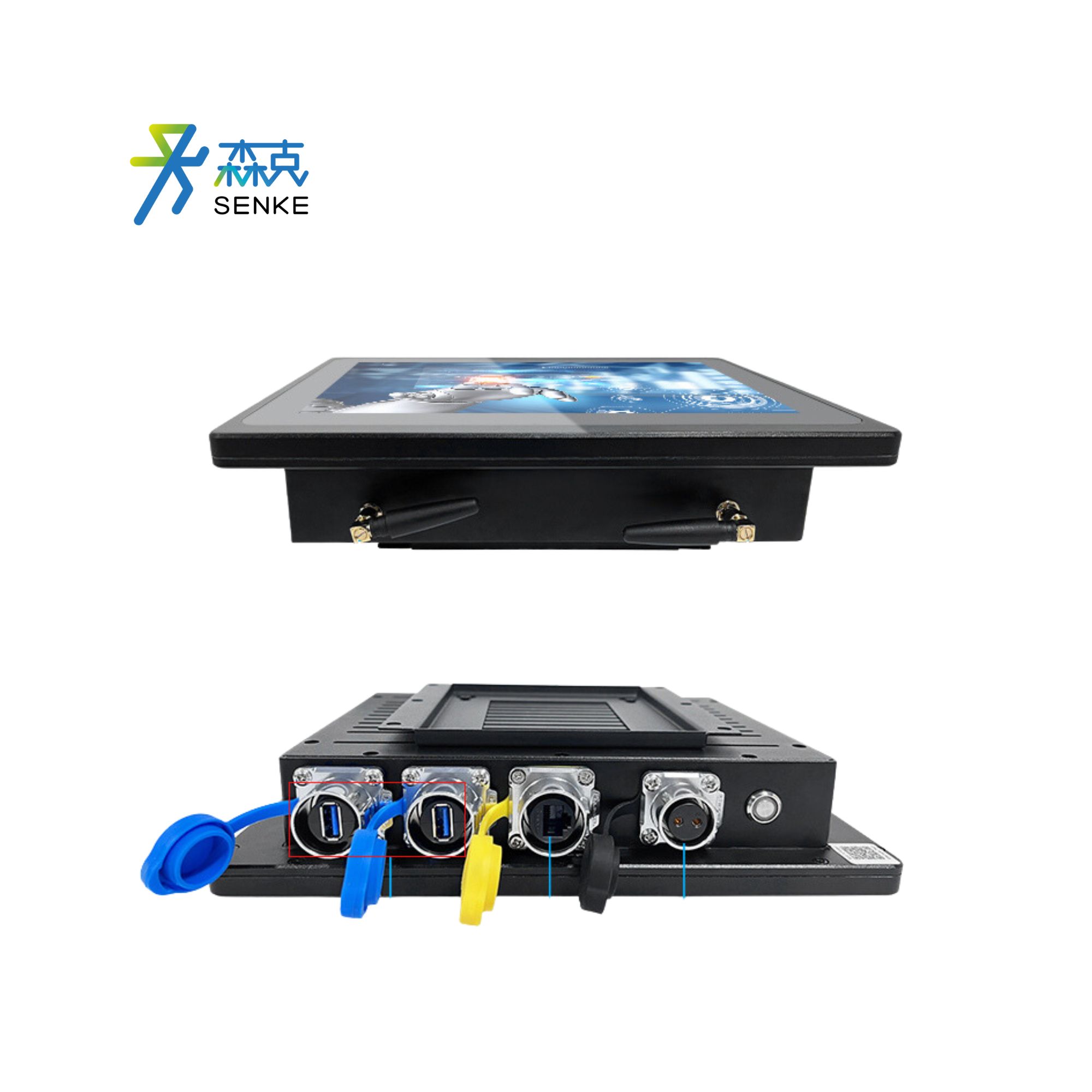

industrial pc ip65 waterproof industrial panel pc
02防水工控一体机 (8).jpg
02防水工控一体机 (7).jpg

industrial pc ip65 waterproof industrial panel pc

15.6” 21.5” FDseries DB01 series
 Size: 15.6” 21.5” ”
The product has passed and obtained high and low temperature, EMC, safety and other test reports
Supports multiple installation methods such as embedded/wall mount/desktop base/cantilever bracket

industrial pc ip65 waterproof industrial panel pc

Senke Industrial Motherboard; Cast Aluminum Shell; Die-Casting Process; Fanless Fully Enclosed Design, Dustproof, Zero Silence, Stable And Reliable, Strong Anti-Electromagnetic Interference Ability

Product Overview

      The industrial control all-in-one machine adopts industrial-grade aluminum profile structure, customized aluminum alloy die-casting mold, and efficient fin-type heat dissipation structure. It can adapt to various complex and harsh application scenarios with high dust and work stably in high and low temperature environments.
    The whole machine is equipped with a variety of professional interfaces. While meeting the needs of conventional application scenarios, it can also add customized functions and interfaces according to different application scenarios.

Product Features

  • Brand new industrial screen display, high-definition and bright colors
  • Built-in industrial motherboard with powerful performance, optional configuration, flexible interface expansion and strong compatibility
  • Customized aluminum alloy die casting mold
  • Customized industrial-grade aluminum profile front frame structure

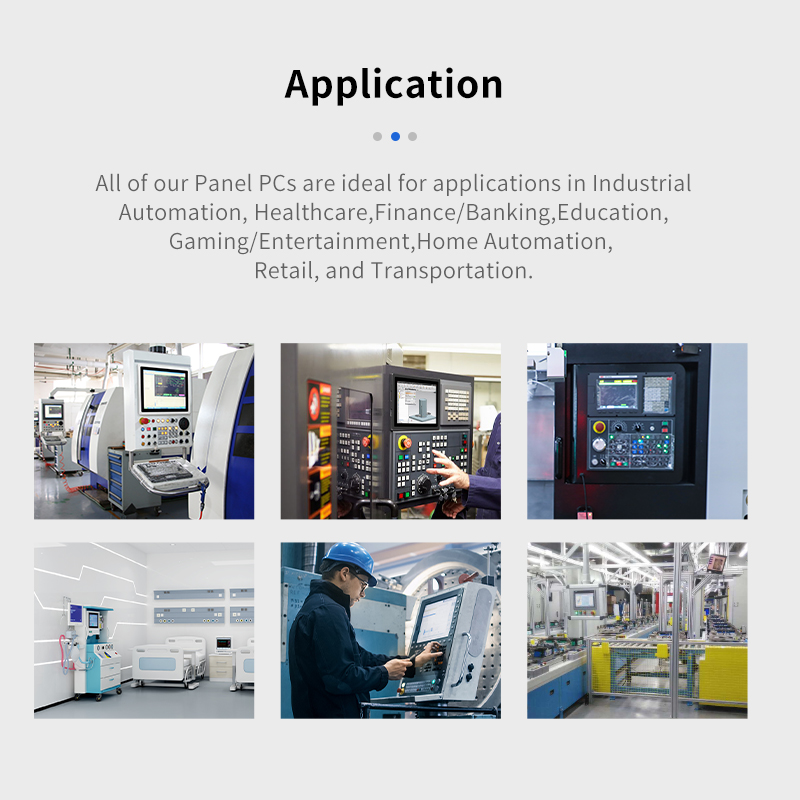

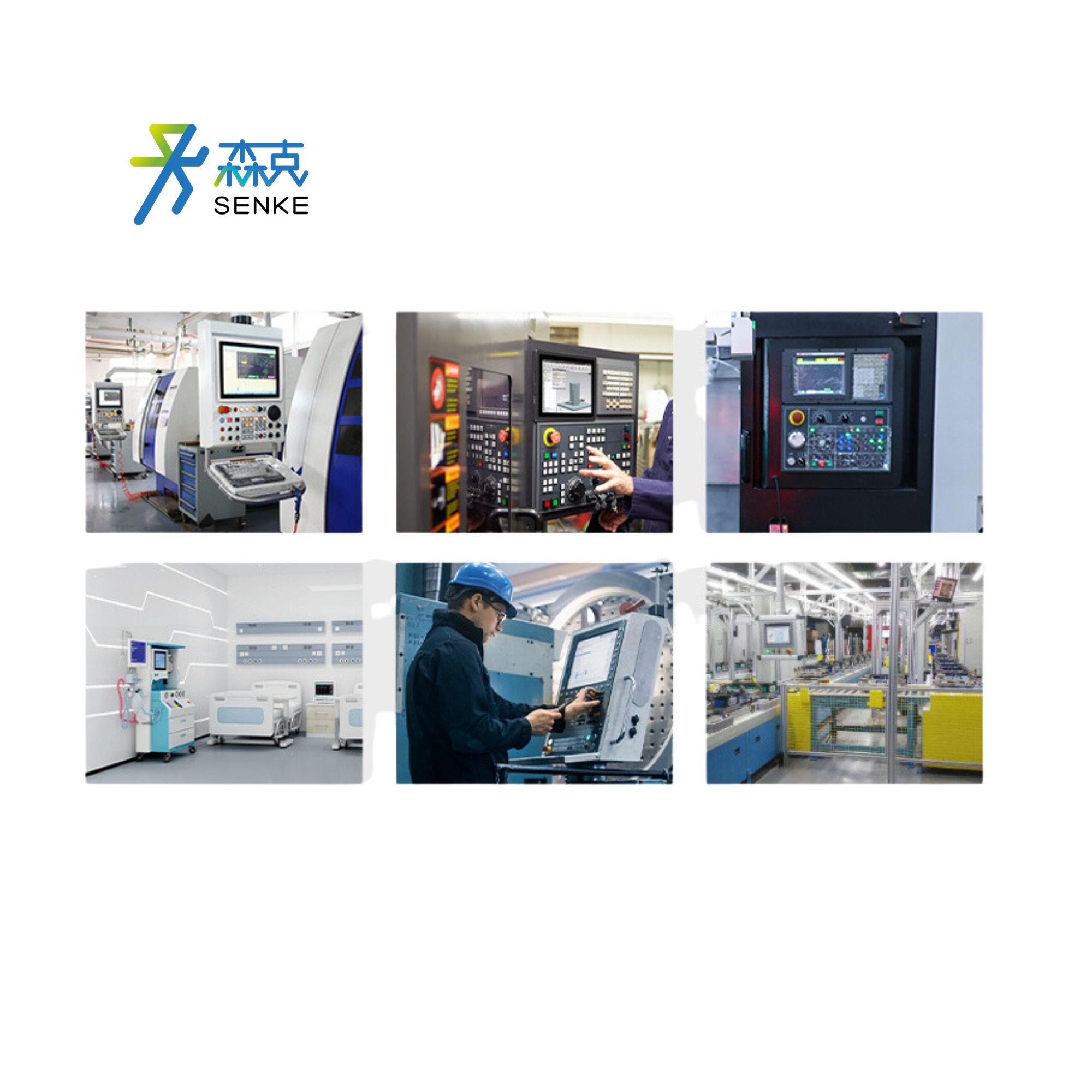

 Product application scope

  • Automation control terminal
  • Edge computing terminal
  • HMI Human Machine Interface
  • MES system execution terminal
  • Visual inspection terminal
  • SOP Workstation

Product Parameters



Basic parameters

Host Configuration

screen size

15.6” 21.5”

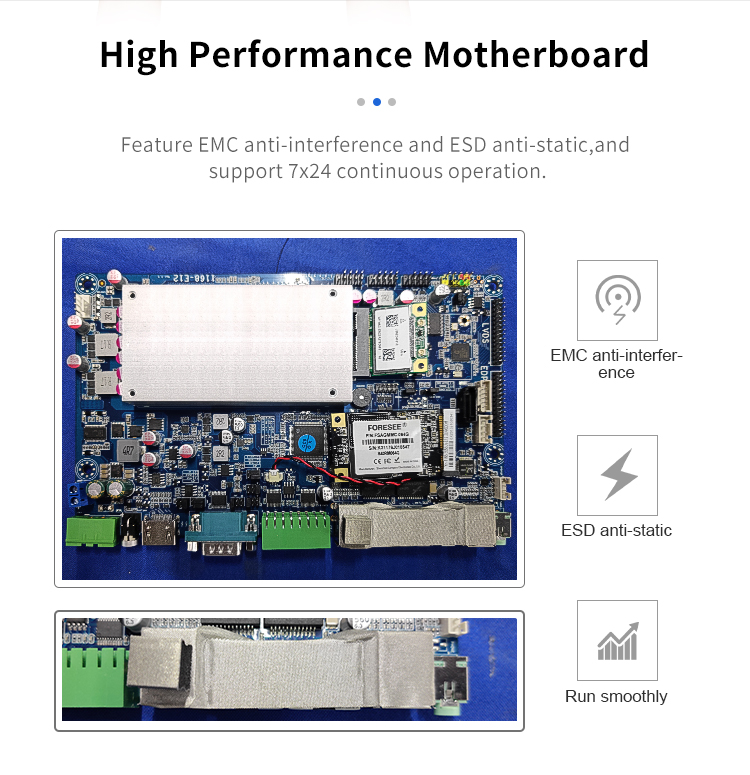

Motherboard

DB01 series Senke industrial motherboard

Resolution

1920*1080

processor

Intel I5-7200U

screen ratio

 16:9 (H:V)

platform

Kaby Lake

brightness

250 cd/m² (Typ.)

Memory

DDR 4 4G

Contrast

3000 : 1

Hard drive capacity

128G SSD

Display Color

16.7M, 72% NTSC

Graphics

Intel HD Graphics 620

Reaction time

30 (Typ.)(Tr+Td) ms

BIOS

AMI UEDI BIOS

Viewing angle

8 9 /8 9 /8 9 /8 9 (Typ.)(CR≥10)

operating system

Windows 10

Dimensions

3 76.9*258.4* 5 8.5mm

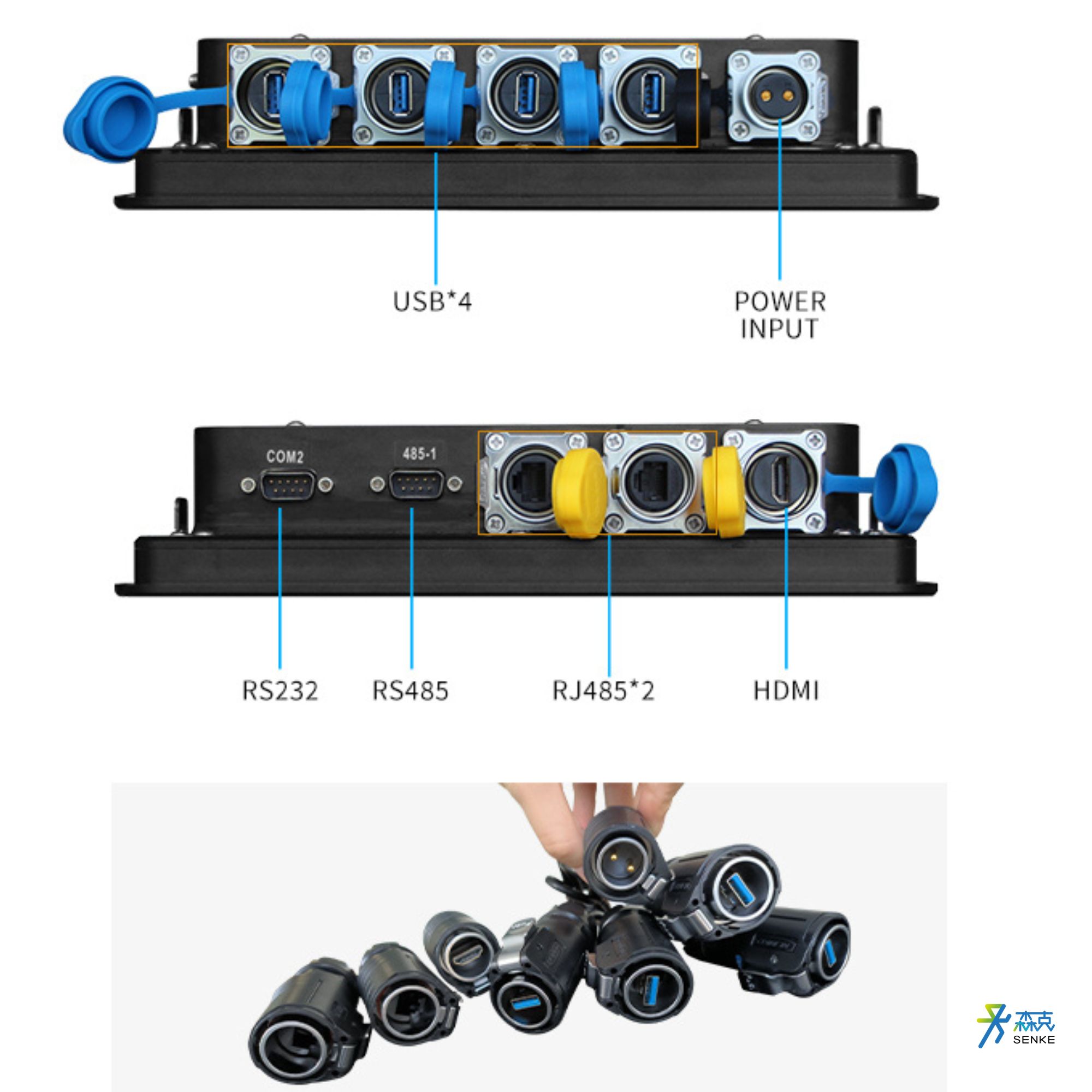

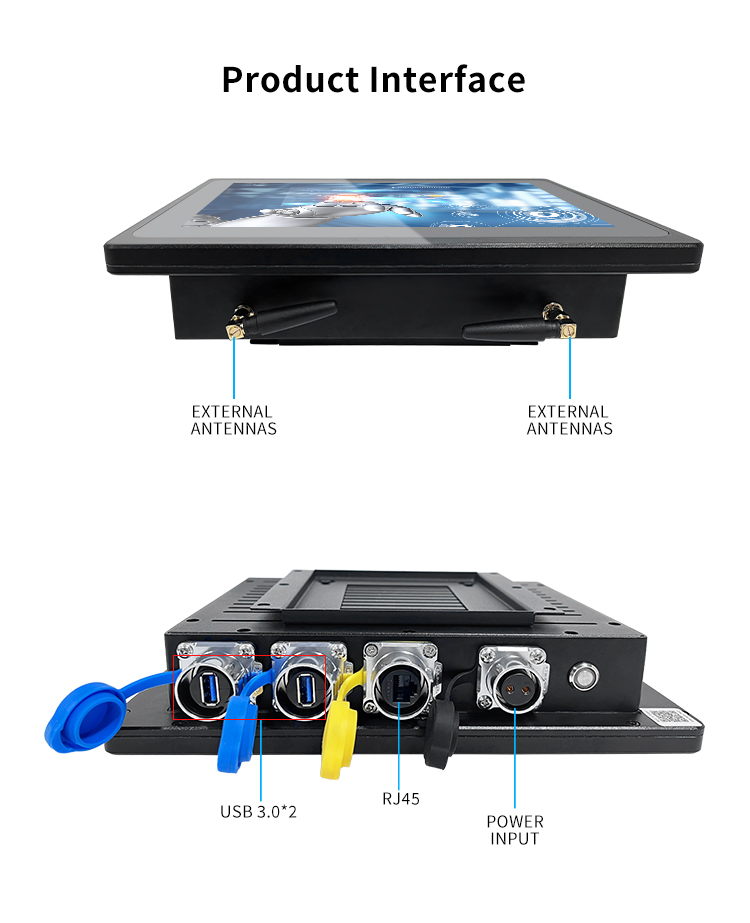

Host interface

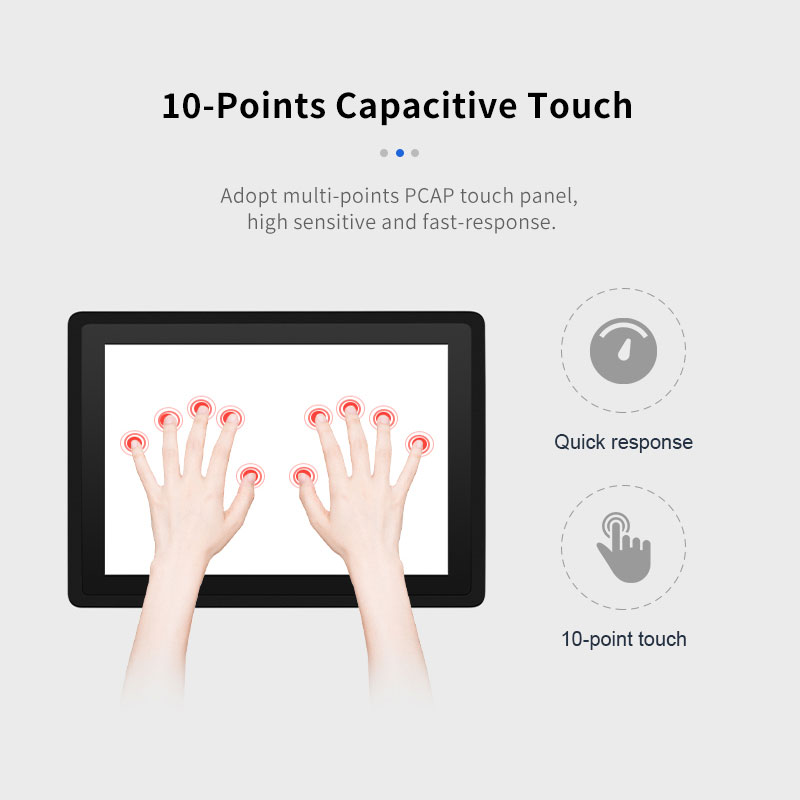

Touch points

10 O'Clock

WIFI

2.4G+5G+Bluetooth (optional)

Touch Type

G+G capacitor

HDMI

1*HDMI OUT

working environment

0℃-50℃ (10~90% without condensation)

USB

2*USB3.0, 2*USB2.0

Storage environment

-20℃-70 °C (10~90% without condensation)

LAN

1* LAN/2* LAN (optional)

Default 1*LAN

Power Specifications

DC: 12V
AC: 220V-60Hz

switch

1*Start switch + indicator light

Material\Craftsmanship

Aluminum profile structure, aluminum alloy cast aluminum back cover

DC Power Supply

1*DC IN Phoenix terminal

color

black

COM

2*DP9 (RS232/RS485 signal optional, RS232 signal by default)

Installation

Wall-mounted, desktop

Audio

1* Microphone voice input two-in-one socket

Product Specification


Company Profile




Shanghai Senke Electronic Technology Co., Ltd. is founded in 2012, Senke is a company specializing in touch and commercial display equipment integrating R&D, production, sales and service. Senke has branches in Guangzhou, Shanghai, Beijing, Nanchang, Xi'an, Hangzhou, Chengdu and Hu'nan. Senke has a factory, office area of more than 10,000 square meters. The company's main products are teaching / conference integrated machine, touch inquiry machine, advertising machine, queuing machine, industrial control monitor and various touch display equipment customization, etc. widely used in schools, government and enterprises, shopping malls, stations , banks and factory production lines, etc. We have won praise and support from many customers with excellent quality and perfect after-sales service.


Corporate culture: integrity, professionalism, seriousness, responsibility, innovation, pragmatism Service concept: Integrity-based, technological innovation, mutual benefit Corporate values: Professional determines quality,integrity creates brand.
