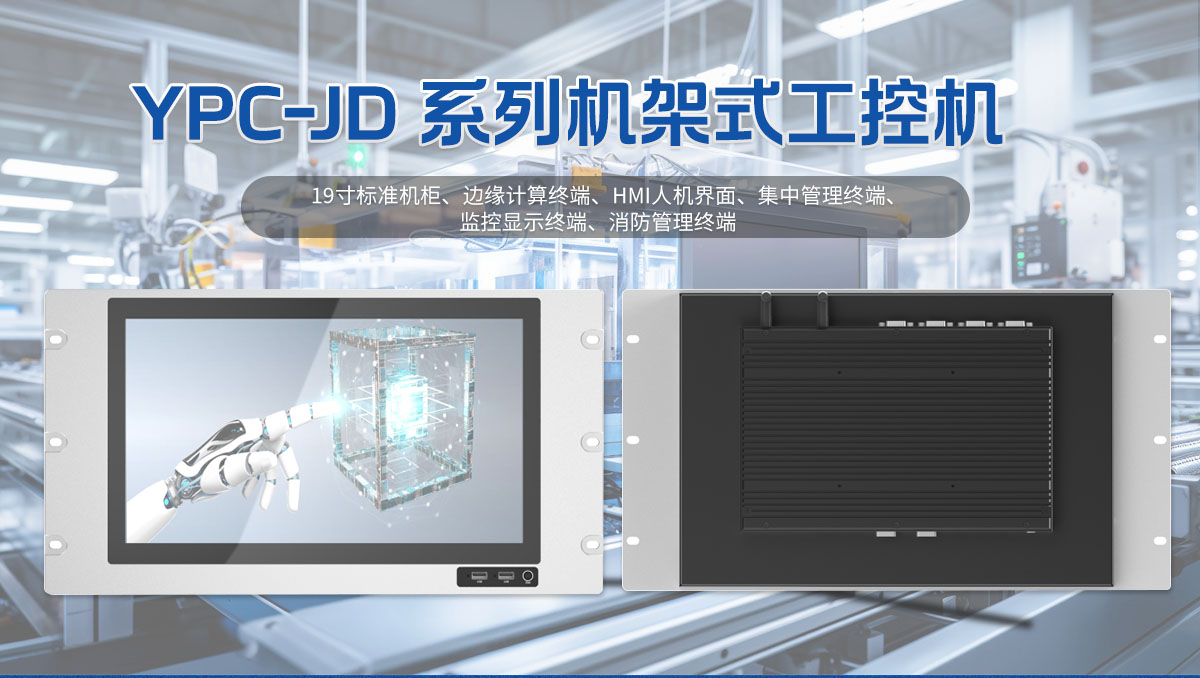

**15-inch Rackmount Industrial Panel PC — Fully Enclosed Dustproof Cabinet All-in-One Computer**

The 15-inch Rackmount Industrial Panel PC is a fully sealed, dustproof all-in-one industrial computer designed for standard 19-inch rack cabinet installation. Featuring a fanless, ventless passive cooling structure and an IP65-rated front panel, it delivers stable 24/7 operation in dusty, humid, and high-vibration industrial environments. Integrating a 15-inch touchscreen, industrial-grade motherboard, and rich I/O ports, it is an ideal HMI terminal for factory automation, server room monitoring, data acquisition, and CNC control.

**Key Advantages**

- **Standard 19-inch rackmount** — direct installation into control cabinets and server racks, quick and secure
- **Fully enclosed dustproof chassis** — fanless and ventless, preventing dust, metal shavings, and fibers from entering
- **Fanless passive cooling** — entire chassis acts as a heat sink, eliminating fan failure and noise
- **IP65 front panel** — water, oil, and dust resistant for harsh industrial sites
- **Rich industrial I/O** — RS232/RS485, dual Gigabit LAN, USB, HDMI, GPIO for direct PLC and peripheral connectivity
- **9–36V wide voltage input** — handles factory power fluctuations, Phoenix terminal connector
- **Industrial-grade components** — wide-temperature operation, 24/7 continuous duty
- **Multi-OS support** — Windows 10/11 IoT, Linux, Android available

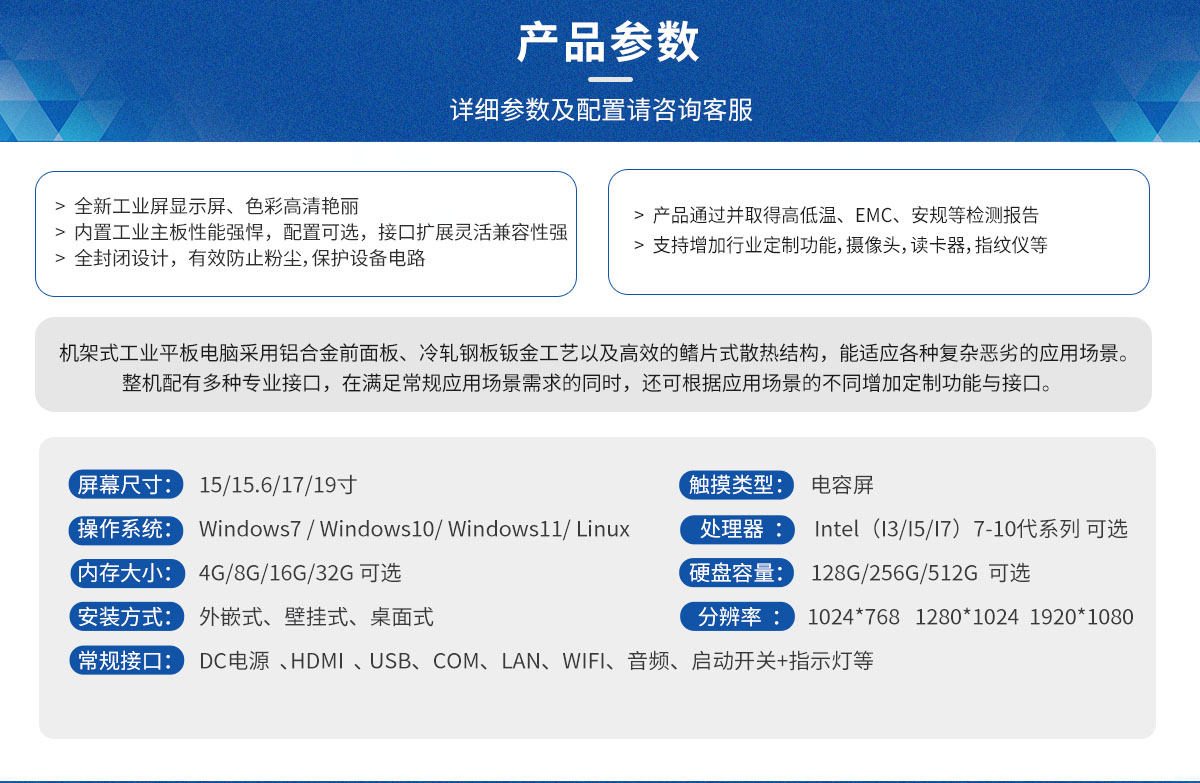

**Technical Specifications**

表格

| Item | Specification |
| --- | --- |
| Display | 15-inch TFT LCD, LED backlight |
| Resolution | 1024 × 768 (XGA) |
| Brightness | 350 cd/m² (500/1000 optional) |
| Touch | 5-wire resistive / projected capacitive (optional) |
| Processor | Intel Celeron J1900/J6412 / Core i3-i7 or ARM RK3568/RK3588 |
| Memory | DDR3L/DDR4 2GB–16GB |
| Storage | mSATA / 2.5" SSD / eMMC 32GB–1TB |
| Ethernet | 2 × RJ45 Gigabit LAN |
| Serial Ports | 2–6 × RS232, 1 × RS485 (Modbus RTU) |
| USB | 4 × USB 2.0, 2 × USB 3.0 |
| Video Output | 1 × HDMI |
| GPIO | 4-channel DI / 4-channel DO (optional) |
| Wireless | Wi-Fi / Bluetooth / 4G (optional) |
| Power Input | 9–36V DC wide voltage, Phoenix terminal |
| Operating Temp | −10°C to 60°C |
| Storage Temp | −20°C to 70°C |
| Humidity | 10%–90% (non-condensing) |
| Front Panel | IP65 |
| Mounting | 19-inch rackmount |
| Housing | Heavy-duty steel / aluminum alloy |
| Certifications | CE, FCC, RoHS |

*Specifications are customizable via OEM/ODM. Contact us for details.*

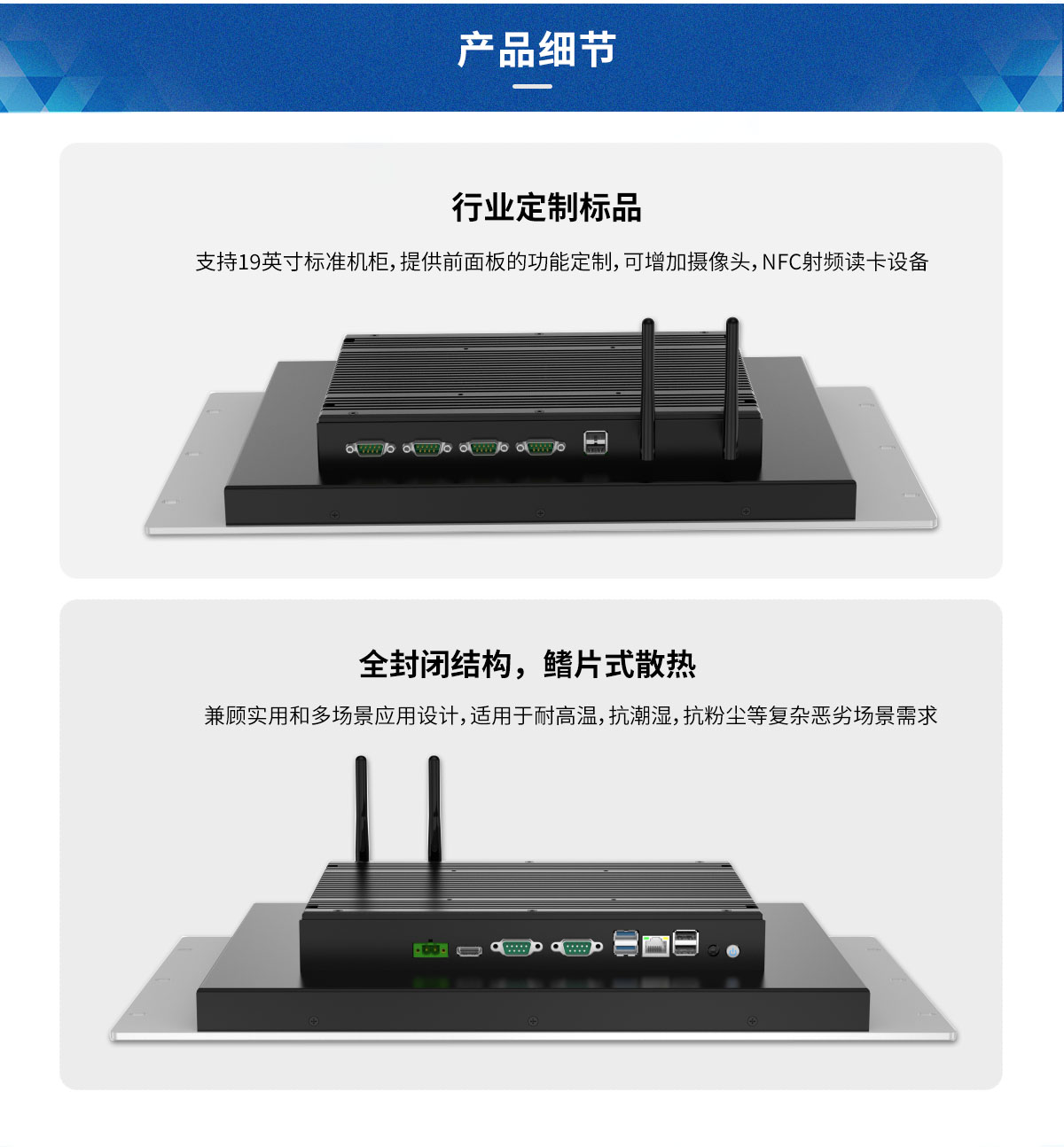

**Rackmount Design — Effortless Cabinet Integration**

Built to standard 19-inch rack dimensions with pre-drilled mounting ears, this panel PC installs directly into industrial control cabinets, server racks, and network enclosures — ideal for centralized control rooms and space-constrained data acquisition stations.

**Fully Enclosed Dustproof Construction**

Dust is a leading cause of industrial computer failure. This unit's fully sealed, ventless chassis with fanless cooling prevents dust, metal shavings, wood particles, and textile fibers from entering — extending service life and reducing maintenance in harsh manufacturing environments.

**Fanless Passive Cooling — Stable and Reliable**

The entire metal chassis functions as a heat sink, dissipating processor heat through its large surface area without any fans. This eliminates fan failure, dust intake, operating noise, and routine fan maintenance.

**Industrial-Grade Connectivity**

Dual Gigabit Ethernet, multiple RS232/RS485 serial ports, USB 3.0, HDMI, and optional GPIO connect seamlessly to PLCs, sensors, barcode scanners, printers, and external displays. RS485 supports Modbus RTU — the standard protocol in industrial automation.

**Application Scenarios**

- Factory automation production line monitoring and control (HMI)
- CNC machine operator interface
- Power / energy substation monitoring
- Data acquisition and process visualization (DAQ)
- Server room rack-mounted monitoring terminal
- Cleanroom / warehouse environmental control
- Transportation hub ticketing and access control
- Smart manufacturing MES workstation

**Why Choose Us**

- OEM/ODM capability — customize ports, branding, enclosure, and configuration
- Strict quality control — 48-hour burn-in test, full inspection before shipment
- Long product lifecycle — 5+ years component availability
- Professional engineering team — pre-sales consultation and after-sales support
- Flexible MOQ — sample orders accepted, stable bulk delivery
- Certified quality — CE, FCC, RoHS; ISO 9001 manufacturing

**Contact us today** for a quotation and technical solution. Our engineering team will configure the right rackmount industrial panel PC for your application.
