15.6 Inch YPC‑JD Rack‑mount Industrial All‑in‑One PC, Full‑closed Dust‑proof Cabinet Industrial Tablet PC
SK-JD
Rack‑mount installation,Full‑closed dust‑proof,fanless cooling,1920*1080 FHD,Windows/Android optional,DC9‑36V wide voltage
15.6 Inch YPC-JD Rack-mount Industrial All-in-One PC, Full-closed Dust-proof Cabinet Industrial Tablet PC
YPC-JD156 Series Overview
Pre-order Features: 15.6-inch FHD widescreen, standard rack-mount structure, full-closed dust-proof design, fanless passive cooling, cabinet dedicated industrial HMI, wide voltage power supply, 7×24h stable operation

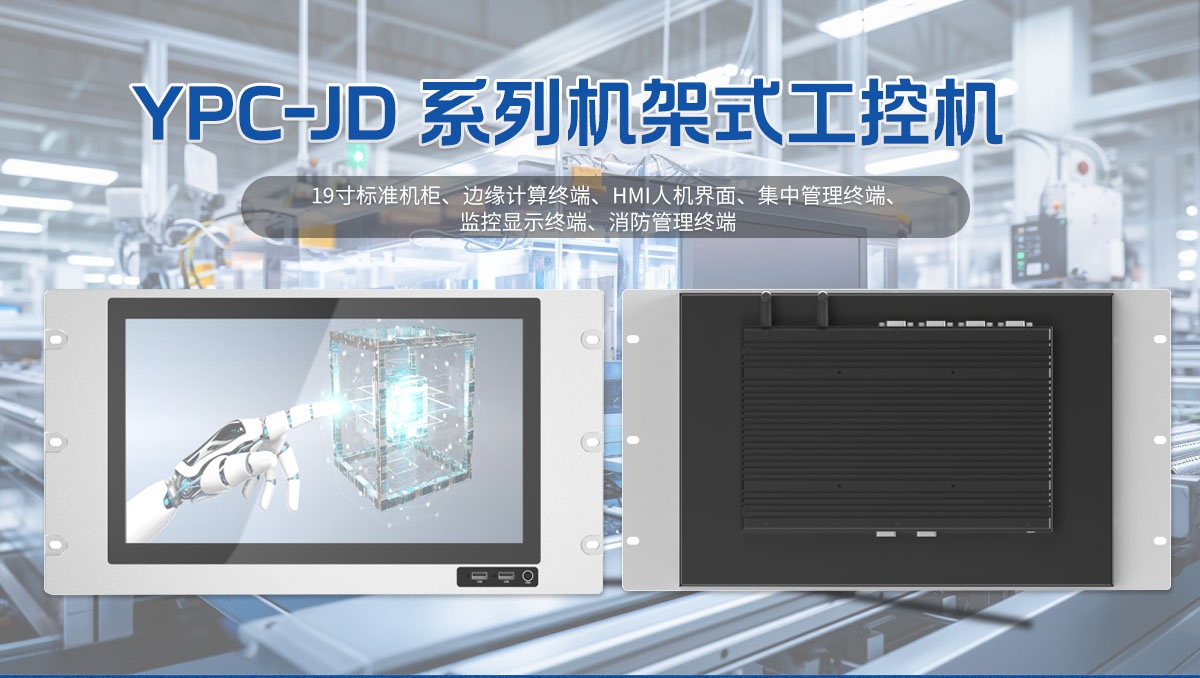

[Introduction] YPC-JD156 is a newly upgraded 15.6-inch rack-mounted industrial all-in-one computer, specially developed for indoor installation of various industrial control cabinets and equipment cabinets. Adopts standard rack mounting size, which can be quickly installed in standard industrial cabinets without occupying extra workshop space. The full-closed integrated aluminum alloy structure effectively isolates internal components from cabinet dust, moisture and fine particles, greatly improving equipment stability in closed cabinet environments. Equipped with 1920*1080 high-definition widescreen display and industrial touch screen, it provides clear visual display and sensitive touch operation for on-site equipment debugging, parameter setting, production data viewing and equipment status monitoring.
[System] Supports Intel 7th/10th/12th Gen Core i3/i5/i7 multi-generation processor solutions, covering low power consumption and high-performance configuration. Compatible with Windows 7/10/11 and Linux operating systems, supports industrial control software operation, remote management and secondary development, adapting to different automation control system docking requirements.
[Heat Dissipation] Adopts full fanless passive heat dissipation solution, no fan rotating parts, completely avoid dust accumulation and mechanical failure caused by fans. The thickened aluminum alloy rear cover forms an efficient heat conduction system, which can continuously and stably dissipate heat for a long time, realizing 7×24-hour uninterrupted industrial operation.

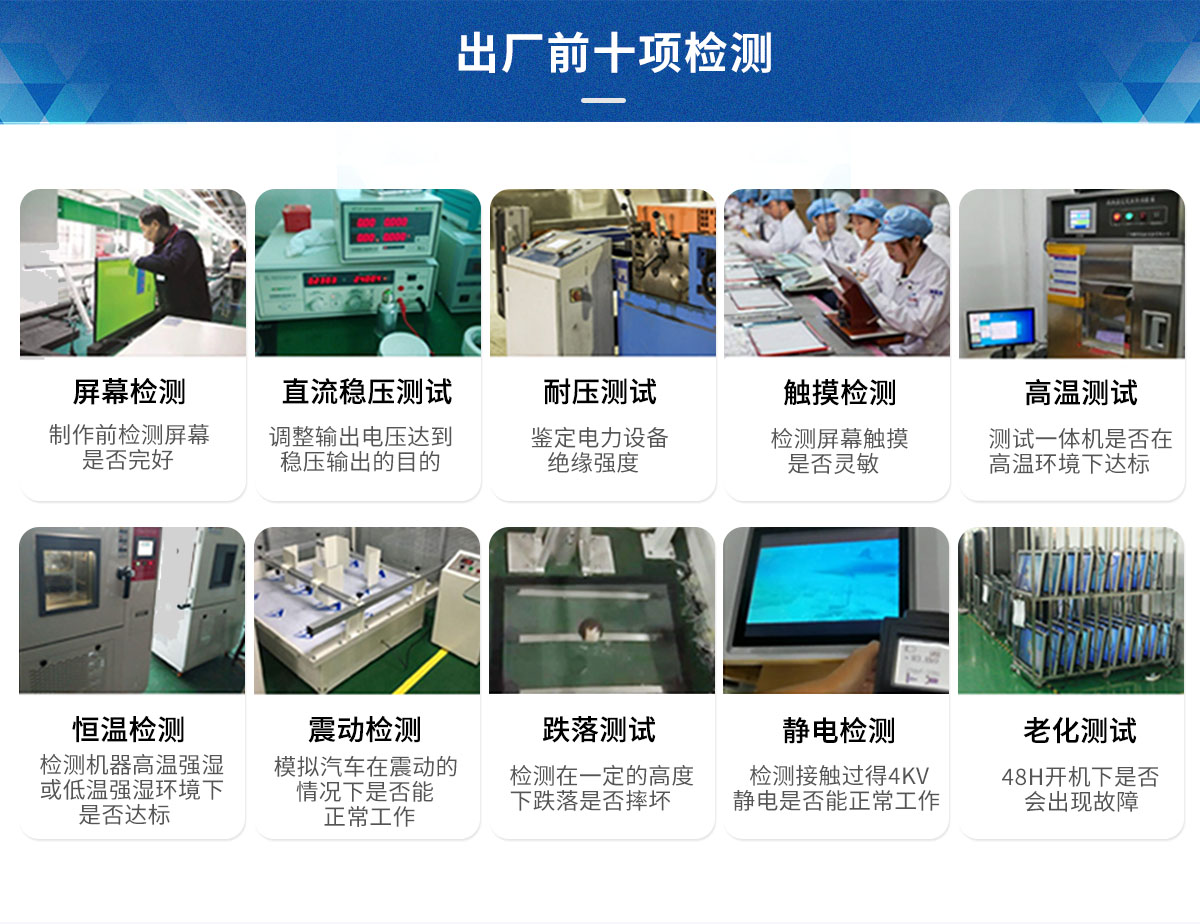

[Environment] Industrial-grade rugged design, with excellent anti-vibration, anti-electromagnetic interference and anti-static capabilities. Support wide temperature working environment from -20℃ to 60℃, adapt to high temperature, dusty and poorly ventilated complex working conditions inside closed cabinets. The whole machine is dust-proof and anti-splash, meeting long-term industrial site application standards.

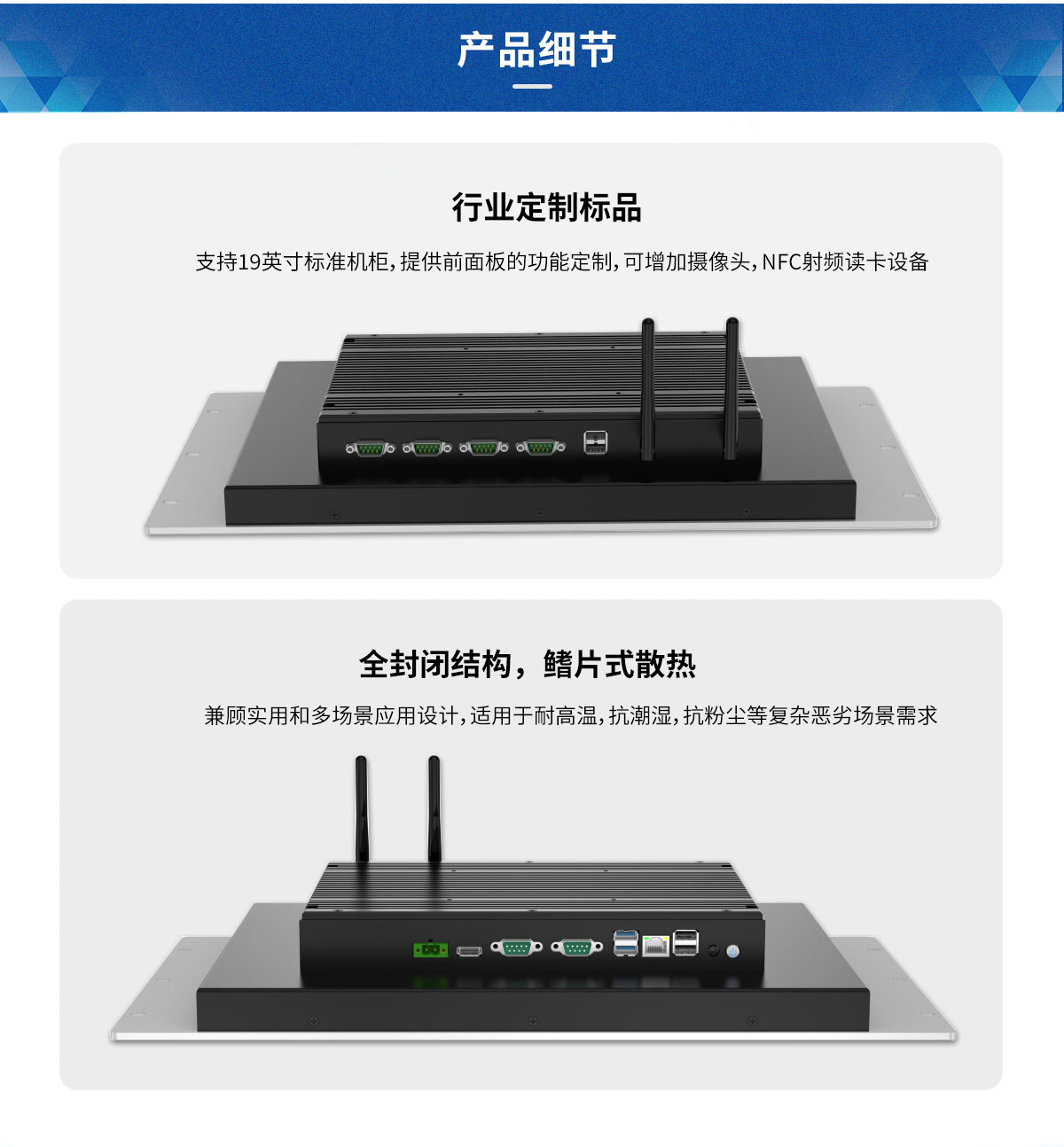

[Interfaces] Reserved rich industrial dedicated interfaces, including dual gigabit Ethernet ports, multi-group switchable RS232/RS485 serial ports, multiple USB3.0/USB2.0 high-speed interfaces, HDMI display interface and audio interface. Support WIFI, Bluetooth and 4G module expansion. Equipped with DC 9-36V wide voltage power supply, adapt to unstable industrial on-site power supply, convenient for connecting PLC, sensors and various automation equipment.
[Application] Widely used in mechanical equipment supporting cabinets, automated production line control cabinets, new energy equipment cabinets, intelligent testing equipment and industrial automation cabinet HMI terminals. It is used for equipment status visualization, on-site man-machine operation, real-time data acquisition and production equipment linkage control, helping enterprises realize intelligent and transparent workshop management.

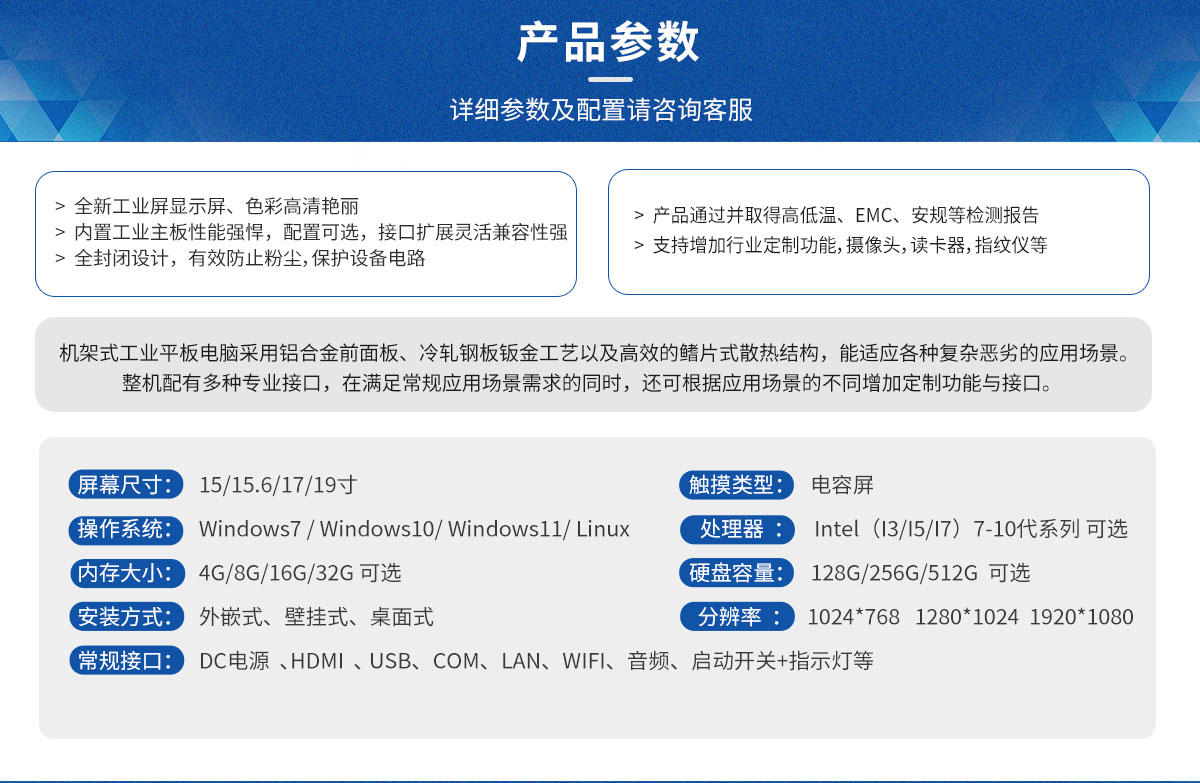

Basic Specifications
|
Item |
7th Gen Config |
10th Gen Config |
12th Gen Config |
|---|---|---|---|
|
Model |
YPC-JD156 |
YPC-JD156 |
YPC-JD156 |
|
Display |
15.6" TFT-LCD, 16:9, 1920*1080 FHD |
15.6" TFT-LCD, 16:9, 1920*1080 FHD |
15.6" TFT-LCD, 16:9, 1920*1080 FHD |
|
Touch Screen |
Capacitive / Resistive touch optional |
Capacitive / Resistive touch optional |
Capacitive / Resistive touch optional |
|
Brightness |
300cd/m² |
300cd/m² |
300cd/m² |
|
Viewing Angle |
85°/85°/85°/85°(L/R/U/D) |
85°/85°/85°/85°(L/R/U/D) |
85°/85°/85°/85°(L/R/U/D) |
|
Processor |
Intel® Kaby Lake 7th Gen (i3/i5/i7) |
Intel® Comet Lake 10th Gen (i3/i5/i7) |
Intel® Alder Lake 12th Gen (i3/i5/i7) |
|
BIOS |
AMI UEFI BIOS |
AMI UEFI BIOS |
AMI UEFI BIOS |
|
Chipset |
Intel® SOC |
Intel® SOC |
Intel® SOC |
|
Graphics |
Integrated Intel® HD Graphics 620 |
Integrated 10th Gen Intel® UHD Graphics |
Integrated Intel® Iris® Xe Graphics |
|
Network |
1*RTL8111H Gigabit Ethernet,supports WoL/PXE, optional 2*LAN |
2*RTL8111H Gigabit Ethernet,supports WoL/PXE |
2*RTL8111H Gigabit Ethernet,supports WoL/PXE |
|
HDMI |
1*HDMI |
1*HDMI |
1*HDMI |
|
External I/O |
2*COM (RS232/RS485 switchable);2*USB3.02*USB2.0;1*Audio combo (audio outmic in);1*Illuminated power button |
2*COM (RS232/RS485 switchable);2*USB3.0; 2*LAN; 1*Audio combo (audio out/mic in);1*Illuminated power button |
2*COM (RS232/RS485 switchable);2*USB3.0; 2*LAN; 1*Audio combo (audio out/mic in);1*Illuminated power button |
|
Internal I/O |
4*COM RS232 header;1*GPIO header (8-bit);1*SATA connector |
4*COM RS232 header;1*GPIO header (8-bit);1*SATA connector |
4*COM RS232 header;1*GPIO header (8-bit);1*SATA connector |
|
Expansion Slots |
1*MINI-PCIE (4G module);1*M.2 2230 (WIFI/BT module) |
1*MINI-PCIE (4G module);1*M.2 2230 (WIFI/BT module) |
1*MINI-PCIE (4G module);1*M.2 2230 (WIFI/BT module) |
|
Storage |
1*2.5" SATA HDD bay(7mm thickness) |
1*M.2 2280 SSD(SATA/NVMe auto-adaptive);1*2.5" SATA HDD bay(7mm thickness) |
1*M.2 2280 SSD(SATA/NVMe auto-adaptive);1*2.5" SATA HDD bay(7mm thickness) |
|
Power |
DC12V power supply (optional 9-36V wide voltage input) |
DC12V power supply (optional 9-36V wide voltage input) |
DC12V power supply (optional 9-36V wide voltage input) |
|
Functions |
WIFI/BT/4G/Watchdog |
WIFI/BT/4G/Watchdog |
WIFI/BT/4G/Watchdog |
|
Operating System |
Windows 7/10/11/Linux |
Windows 10/11/Linux |
Windows 10/11/Linux |
|
Mounting |
Standard Rack-mount |
Standard Rack-mount |
Standard Rack-mount |
|
Operating Env. |
-20℃~60℃,10%-90% non-condensing |
-20℃~60℃,10%-90% non-condensing |
-20℃~60℃,10%-90% non-condensing |
|
Storage Env. |
-30℃~70℃,5%-95% non-condensing |
-30℃~70℃,5%-95% non-condensing |
-30℃~70℃,5%-95% non-condensing |
|
Cooling |
Fanless Passive Cooling |
Fanless Passive Cooling |
Fanless Passive Cooling |
|
Chassis Material |
Full-closed aluminum alloy dust-proof housing |
Full-closed aluminum alloy dust-proof housing |
Full-closed aluminum alloy dust-proof housing |
Ordering Information
|
No. |
Model |
Version |
CPU |
Memory |
LAN |
COM |
HDMI |
USB3.0 |
USB2.0 |
Power |
|---|---|---|---|---|---|---|---|---|---|---|
|
1 |
YPC-JD156 |
7th Gen A |
7th i3/i5/i7 |
1*SO-DIMM |
1*8111H |
2 |
1 |
2 |
4 |
12V(opt.9-36V) |
|
2 |
YPC-JD156 |
7th Gen B |
7th i3/i5/i7 |
1*SO-DIMM |
2*8111H |
6 |
1 |
2 |
4 |
12V(opt.9-36V) |
|
3 |
YPC-JD156 |
10th/12th Gen |
10th/12th i3/i5/i7 |
2*SO-DIMM |
2*8111H |
6 |
1 |
2 |
4 |
12V(opt.9-36V) |
Senke Electronic is a manufacture of industrial panel pc, industrial box pc, rugged tablet, kiosk payment and digital display advertising.
