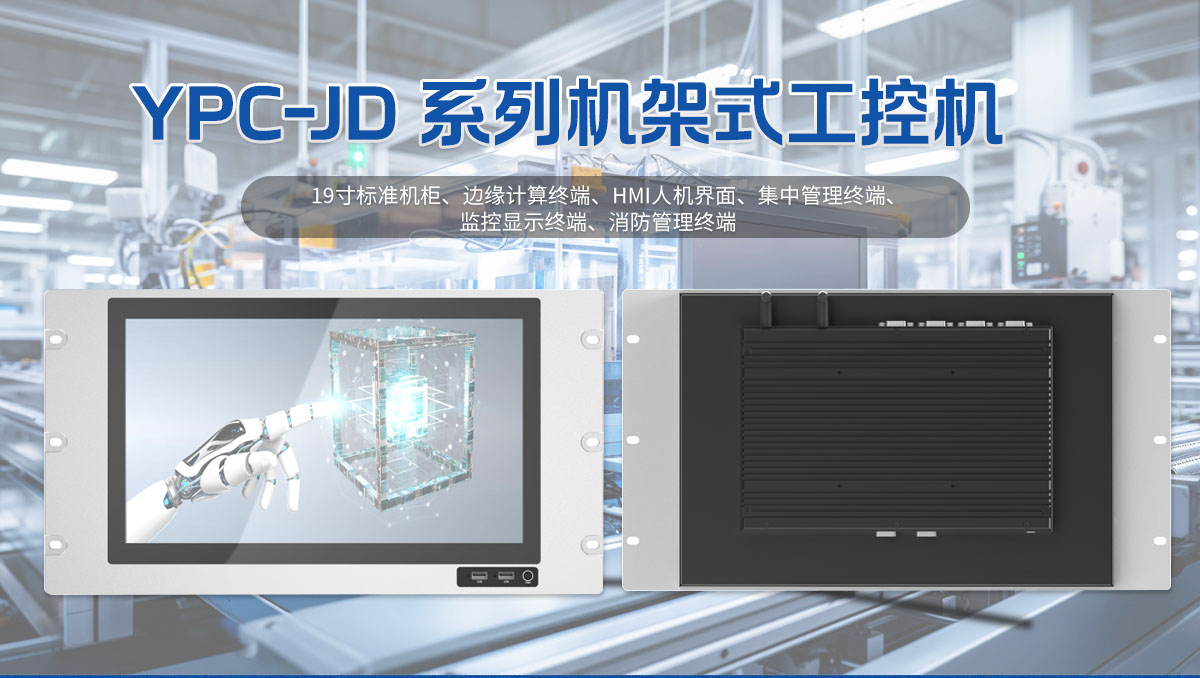

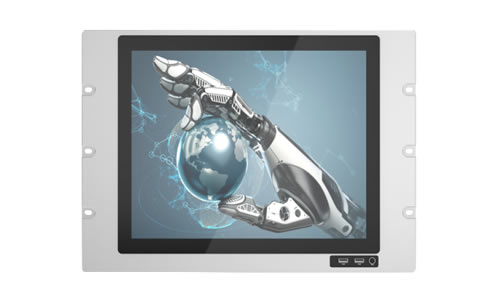

JD‑17 Rack‑mount Fanless Industrial All‑in‑One PC Introduction

The JD‑17 belongs to JD series rack‑mount industrial all‑in‑one PCs, which is specially engineered for standard 19‑inch industrial control cabinet integration and on‑site cabinet‑embedded deployment. Different from general‑purpose commercial computers, the whole unit adopts fully‑enclosed seamless metal welded chassis structure, which can effectively block workshop dust, metal powder, water mist and airborne impurities from invading internal hardware components. Eliminating built‑in cooling fans, the passive heat‑dissipation structure relies on high‑conductivity rear radiator to conduct and export internal heat, removing hidden risks such as fan ageing, bearing noise, dust blockage and frequent maintenance, greatly lowering long‑term operation failure rate for cabinet‑confined installation environment.

This 17‑inch industrial touch computer supports two mainstream installation solutions. It can be directly mounted onto standard 19‑inch equipment racks for centralized cabinet deployment; meanwhile, it also reserves mounting openings for cabinet embedded installation, which is suitable for old‑project renovation, machine tool cabinet upgrade and custom‑built control cabinet projects. The 4:3 standard‑ratio 1280×1024 LCD screen matches most legacy industrial HMI display logic, resistive touch and capacitive touch are both available for selection, adapting glove‑touch operation on production workshop floor.

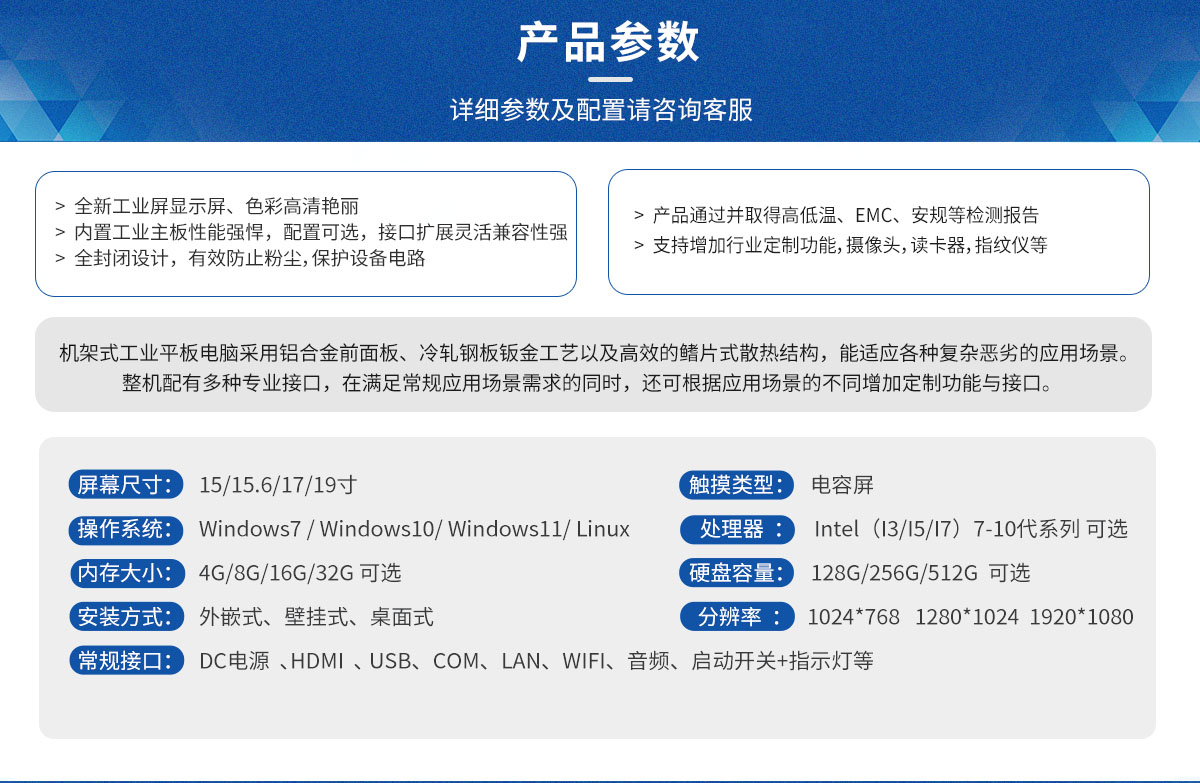

For computing performance, JD‑17 offers multi‑grade Intel 7th /10th /12th Gen Core i3/i5/i7 processor options, balancing low‑power consumption and computing capacity. It is fully compatible with Windows 10, Windows 11 and mainstream Linux industrial distributions. Built‑in industrial‑grade practical functions include hardware watchdog timer, automatic power‑on after power restoration, scheduled power on/off, supporting user secondary development, remote device management, local data logging, real‑time data visualization, and stable communication linkage with multiple sets of PLC, servo controllers and field sensors.

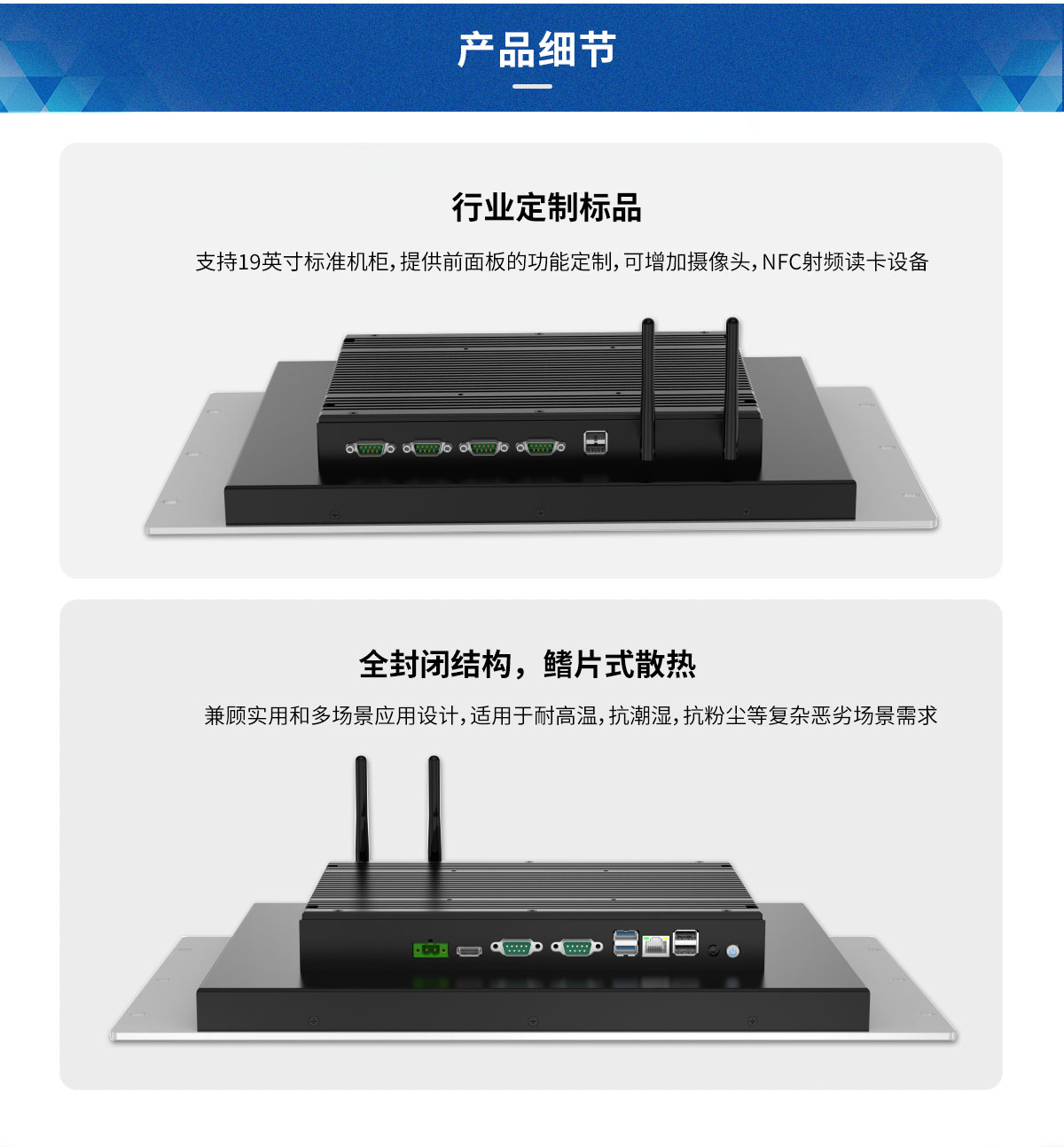

In view of harsh electromagnetic environment inside industrial cabinets caused by inverters, contactors and frequency converters, this machine passes enhanced EMC electromagnetic compatibility optimization. It features wide temperature working capacity from ‑10℃ to 55℃, works steadily under high‑density heat accumulation inside closed cabinets. Rich industrial‑oriented I/O interfaces satisfy diverse field wiring requirements: dual gigabit LAN ports support network redundancy to avoid single‑network failure risk; multiple groups of hardware‑switchable RS232 / RS485 COM ports connect instrumentation equipment; sufficient USB3.0 & USB2.0 interfaces facilitate data export and peripheral access. M.2 and Mini‑PCIe expansion slots reserve space for WIFI, Bluetooth and 4G LTE wireless modules to realize off‑line cabinet wireless data transmission. DC 9‑36V wide‑voltage power input can cope with voltage fluctuation and surge interference of on‑site industrial power supply.

Typical Application Scenarios

• Standard 19‑inch control cabinet integrated HMI human‑machine terminal
• Automated assembly line cabinet control station and production data monitoring terminal
• Machine tool, printing & packaging equipment cabinet control system
• Intelligent monitoring cabinet, energy‑management on‑site acquisition unit
• Factory workshop retrofitting project, equipment transformation cabinet host
