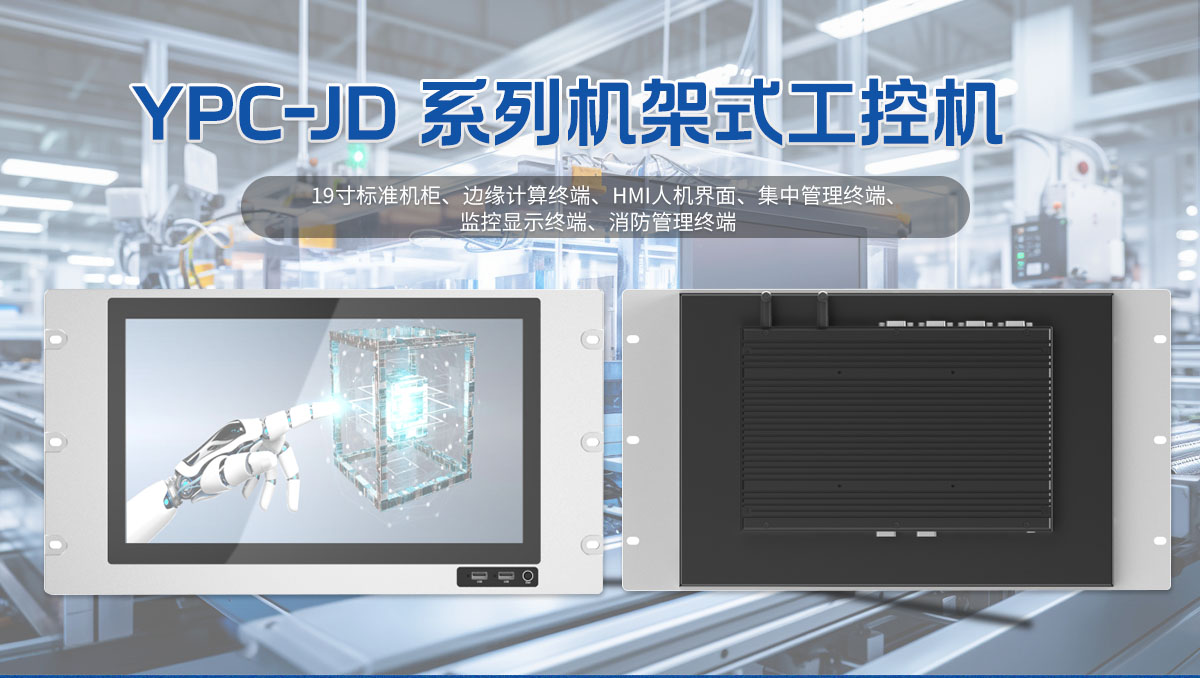

## YPC‑RK‑190 19 Inch Rack‑Mount Industrial Panel PC

**Main Features**: Standard 19‑inch rack‑mount dimension, fanless passive cooling, cabinet‑use design, 7×24‑hour continuous stable operation.

**Introduction**
YPC‑RK‑190 is a 19‑inch standard rack‑mount industrial touch all‑in‑one computer specially designed for standard control cabinets. Adopting industry‑standard rack‑mount structure, it can be directly installed inside cabinet, saving cabinet space. Fully enclosed metal housing provides good dust‑proof and EMC anti‑interference ability against interference from inverters and contactors. Integrated touch screen and industrial host in one unit, suitable for equipment monitoring, cabinet HMI operation and on‑site data acquisition. It supports watchdog timer and auto‑power‑on after power‑fail for unattended running.

**System & Cooling**
Optional Intel 7th /10th /12th Gen Core i3/i5/i7 processors. Supports Windows 10/11 and Linux OS. Fanless passive heat dissipation without fan parts, lower maintenance cost.

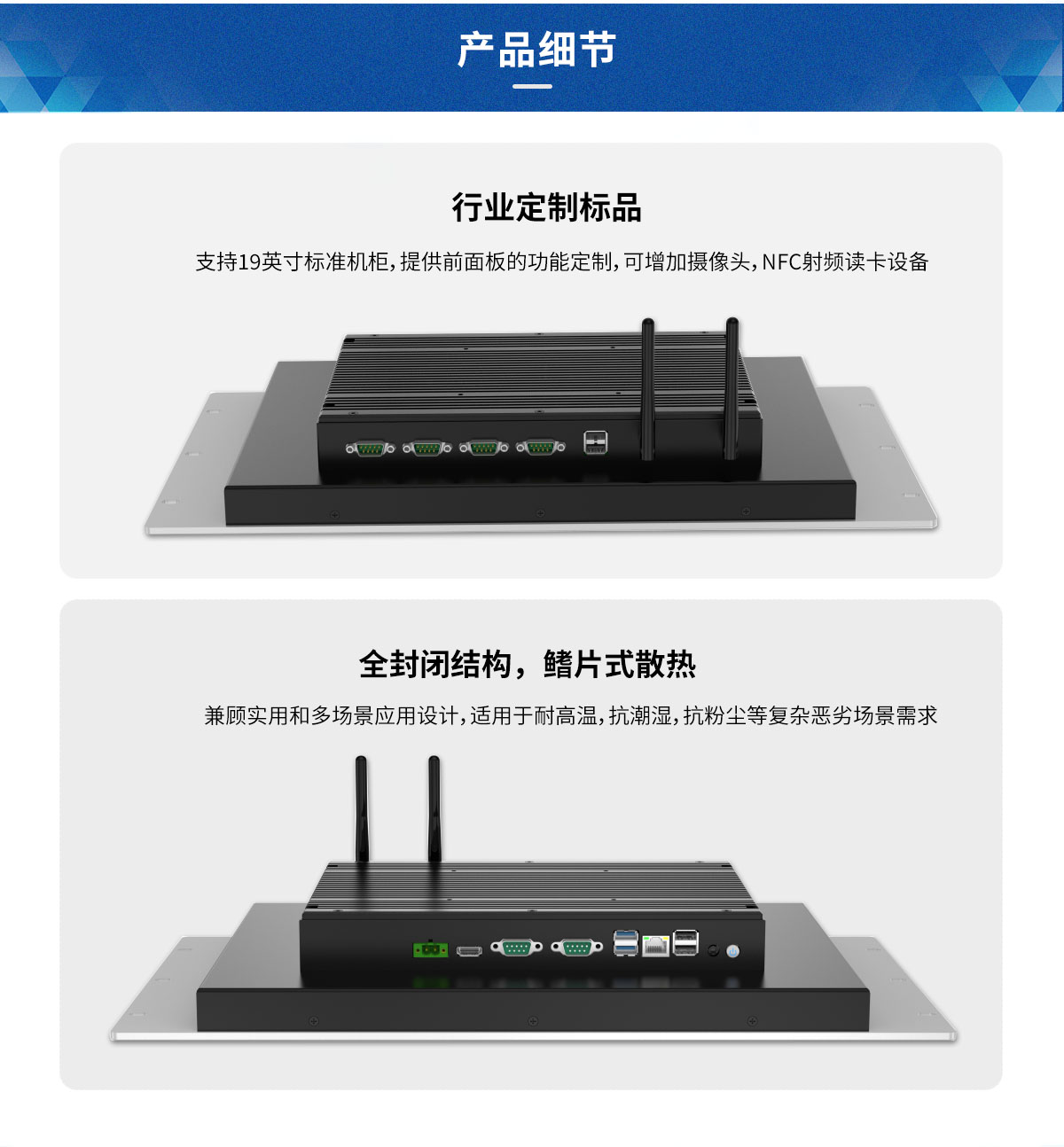

**Interfaces & Environment**
Dual Gigabit Ethernet; configurable RS232/RS485 serial ports; DC9‑36V Phoenix terminal wide‑voltage power; multiple USB interfaces. Reserved slots for WIFI /4G module expansion. Operating temperature: ‑10℃ ~ 55℃.

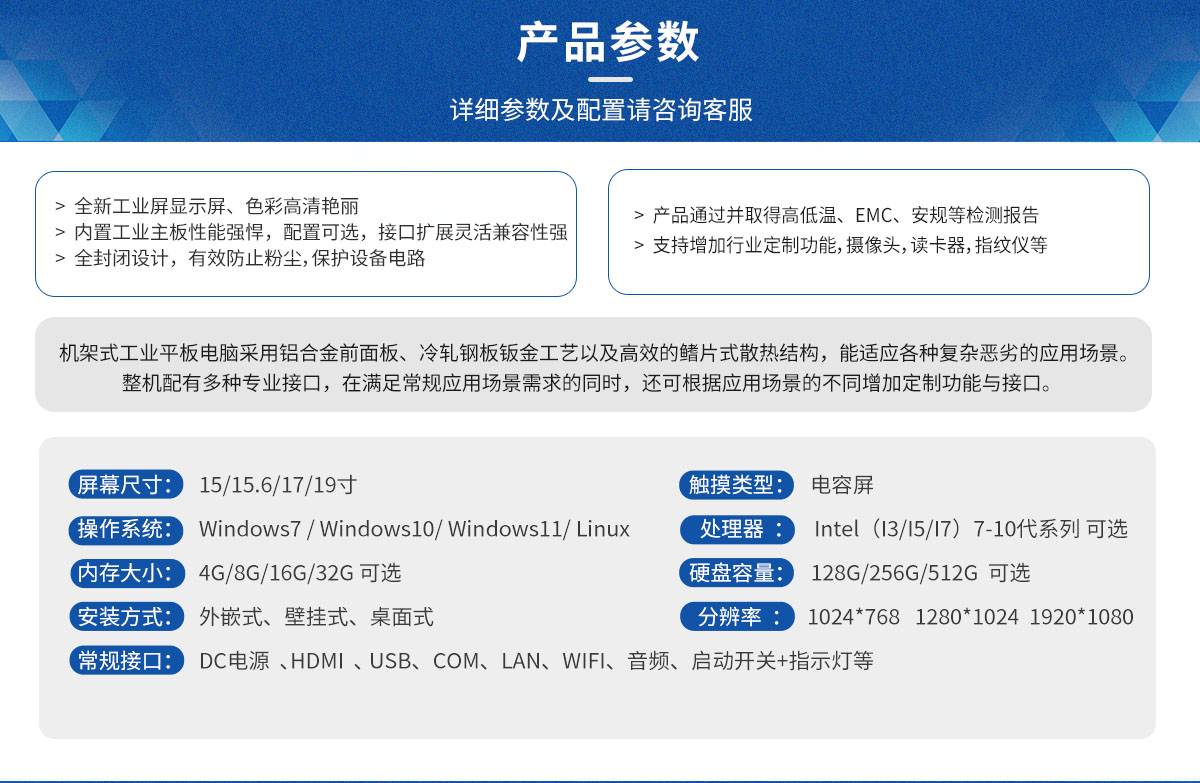

**Basic Specifications**

| Item | 7th Gen Config | 10th Gen Config | 12th Gen Config |
| --- | --- | --- | --- |
| Model | YPC‑RK‑190 | YPC‑RK‑190 | YPC‑RK‑190 |
| Display | 19" TFT‑LCD,4:3 | 19" TFT‑LCD,4:3 | 19" TFT‑LCD,4:3 |
| Touch | Resistive /10‑point Capacitive Touch Optional | Resistive /10‑point Capacitive Touch Optional | Resistive /10‑point Capacitive Touch Optional |
| Resolution | 1280*1024 | 1280*1024 | 1280*1024 |
| Brightness | 350cd/m² | 350cd/m² | 350cd/m² |
| Processor | Intel 7th Gen i3/i5/i7 | Intel 10th Gen i3/i5/i7 | Intel 12th Gen i3/i5/i7 |
| Network | Dual Gigabit Ethernet | Dual Gigabit Ethernet | Dual Gigabit Ethernet |
| Serial Port | Multi‑port RS232/RS485 switchable | Multi‑port RS232/RS485 switchable | Multi‑port RS232/RS485 switchable |
| Power | DC 9‑36V Phoenix terminal | DC 9‑36V Phoenix terminal | DC 9‑36V Phoenix terminal |
| Operating Temp | ‑20℃ ~ 60℃ | ‑20℃ ~ 60℃ | ‑20℃ ~ 60℃ |
| OS | Windows10/11, Linux | Windows10/11, Linux | Windows10/11, Linux |
| Industrial Function | Watchdog, Auto‑power‑on after power‑fail | Watchdog, Auto‑power‑on after power‑fail | Watchdog, Auto‑power‑on after power‑fail |
